The best workstation motherboard for an AI build depends on how many GPUs, memory capacity, and expansion lanes your workload needs. I’d put the ASUS Pro WS WRX90E-SAGE SE first for large Threadripper Pro systems, thanks to its seven PCIe 5.0 x16 slots, ECC registered-memory support, and 10Gb networking. The GIGABYTE TRX50 AI TOP and ASUS ProArt Z890-CREATOR WIFI stand out for builders seeking high-end compute or creator connectivity without the same platform focus. The main tradeoffs are platform cost and complexity versus lane capacity, memory support, and physical room for multiple accelerators. Read on for the full breakdown of where each board fits—and where a gaming or compact model may be a poor match for an AI workload.
Get your wardrobe favorites delivered free with Prime
- Fast, free delivery on millions of items
- Prime Video, Amazon Music and more included
- Member-only deals all year
Complete the kit
Key Takeaways
- WRX90 is the clear fit for maximum GPU expansion: the ASUS Pro WS WRX90E-SAGE SE pairs seven PCIe 5.0 x16 slots with Threadripper Pro and ECC R-DIMM support, separating it from the AM5 and mainstream Intel boards.
- TRX50 sits between workstation and mainstream platforms: the GIGABYTE TRX50 AI TOP and ASUS Pro WS TRX50-SAGE WiFi A target Threadripper builds, but buyers should confirm slot spacing and lane allocation for their exact GPU plan.
- Creator connectivity is not the same as multi-GPU capacity: the ASUS ProArt Z890-CREATOR WIFI adds Thunderbolt 5, 10Gb LAN, and five M.2 slots, while its ATX platform serves a different expansion tier than WRX90.
- ECC and management features vary even within the W680 choices: the ASUS Pro WS W680-ACE IPMI adds IPMI expansion and SlimSAS, while both W680 boards suit Intel workstation builds rather than high-GPU-count systems.
- Several listed boards are mainstream or gaming-oriented, not dedicated multi-GPU workstations: AM5, B860, and Z890 options may fit a single-accelerator or mixed-use build, but check slot layout, lane sharing, and memory support before buying.
| GIGABYTE B860M AORUS Elite WIFI6E Motherboard | ![]() | Best Compact AI Build | Form factor: Micro-ATX | Socket: LGA 1851 | Processor compatibility: Intel Core Ultra Series 2 | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS Pro WS WRX90E-SAGE SE EEB Workstation Motherboard | ![]() | Best for Multi-GPU AI Training | Form factor: EEB | Socket and chipset: sTR5, AMD WRX90 | Processor compatibility: AMD Ryzen Threadripper PRO 7000 WX-Series | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS Pro WS W680-ACE ATX Workstation Motherboard | ![]() | Best for ECC on a Standard Intel Workstation | Form factor: ATX | Chipset and socket: Intel W680, LGA 1700 | Processor compatibility: 12th- and 13th-Gen Intel Core, Pentium Gold, and Celeron | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS X870 MAX Gaming Wi-Fi 7 AMD AM5 ATX Motherboard | ![]() | Best for a Gaming-and-AI Hybrid Build | Form factor: ATX | Socket: AMD AM5 | Processor compatibility: AMD Ryzen 9000, 8000, and 7000 Series | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS Prime X870-P WiFi AMD AM5 Motherboard | ![]() | Best DIY-Friendly AM5 AI Build | Socket: AMD AM5 | Processor compatibility: AMD Ryzen processors | Memory: DDR5 | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS ROG Strix Z890-E Gaming WiFi Motherboard | ![]() | Best Intel Gaming-and-AI Hybrid | Socket: LGA 1851 | Supported processors: Intel Core Ultra Series 2 | Memory: DDR5 | VIEW ON AMAZON | See Our Full Breakdown |
| GIGABYTE B850 AI TOP ATX Motherboard for AMD AM5 | ![]() | Best Value AM5 AI Foundation | Form factor: ATX | Socket and chipset: AM5, AMD B850 | Supported processors: AMD Ryzen 7000, 8000, and 9000 Series | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS ProArt Z890-CREATOR WIFI Z890 LGA 1851 ATX Motherboard | ![]() | Best for Creator Connectivity | Socket: LGA 1851 | Supported processors: Intel Core Ultra Series 2 | Power stages: 16+2+1+2 | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS Pro WS B850M-ACE SE AMD AM5 B850 MicroATX Business Motherboard | ![]() | Best for Remote-Managed Compact Builds | Form factor: MicroATX | Socket: AMD AM5 | Supported processors: AMD Ryzen 9000, 8000, and 7000 Series; AMD EPYC 4005 Series | VIEW ON AMAZON | See Our Full Breakdown |
| GIGABYTE TRX50 AI TOP sTR5 AMD TRX50 EATX Motherboard | ![]() | Best for High-Memory Threadripper AI Workstations | Socket and chipset: sTR5 (LGA 4844), AMD TRX50 | Supported processors: AMD Ryzen Threadripper 7000 Series | Form factor: EATX | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS Pro WS W680-ACE IPMI Intel LGA1700 ATX workstation motherboard | ![]() | Best for Remote-Managed Intel Builds | Socket: Intel LGA1700 | Supported processors: 12th- and 13th-generation Intel Core, Pentium Gold, and Celeron | Form factor: ATX | VIEW ON AMAZON | See Our Full Breakdown |
| GIGABYTE X870E AORUS Xtreme X3D AI TOP AMD AM5 Motherboard | ![]() | Best for a High-End AM5 AI Build | Socket: AMD AM5 | Supported processors: AMD Ryzen 9000, 8000, and 7000 series | Form factor: E-ATX | VIEW ON AMAZON | See Our Full Breakdown |
| ASUS Pro WS TRX50-SAGE WiFi A Workstation Motherboard | ![]() | Best for Multi-GPU and Large-Memory Workstations | Socket and chipset: Socket TR5; AMD TRX50 | Supported processors: AMD Ryzen Threadripper PRO 9000 and 7000 WX-Series; Ryzen Threadripper 9000 and 7000 Series | Form factor: CEB | VIEW ON AMAZON | See Our Full Breakdown |
| workstation motherboards for ai build | Memory | Form factor | Networking | Socket |
|---|---|---|---|---|
| GIGABYTE B860M AORUS Elite WIF | DDR5, 4 DIMMs | Micro-ATX | Wi-Fi 6E, 2.5GbE LAN | LGA 1851 |
| ASUS Pro WS WRX90E-SAGE SE EEB | 8 slots; up to 2TB ECC DDR5 R-DIMM | EEB | Dual 10Gb LAN and 2.5Gb LAN | — |
| ASUS Pro WS W680-ACE ATX Works | DDR5 DIMM, 4 slots, up to 128GB; ECC supported | ATX | 2 x 2.5Gb Ethernet | — |
| ASUS X870 MAX Gaming Wi-Fi 7 A | DDR5 | ATX | Wi-Fi 7, 2.5Gb LAN | AMD AM5 |
| ASUS Prime X870-P WiFi AMD AM5 | DDR5 | — | Wi-Fi 7 and Realtek 2.5Gb Ethernet | AMD AM5 |
| ASUS ROG Strix Z890-E Gaming W | DDR5 | — | — | LGA 1851 |
| GIGABYTE B850 AI TOP ATX Mothe | 4 DDR5 DIMM slots, up to 256 GB | ATX | — | — |
| ASUS ProArt Z890-CREATOR WIFI | DDR5 | — | 10Gb and 2.5Gb Ethernet, WiFi 7 | LGA 1851 |
| ASUS Pro WS B850M-ACE SE AMD A | — | MicroATX | 10G and 2.5G LAN | AMD AM5 |
| GIGABYTE TRX50 AI TOP sTR5 AMD | DDR5 ECC R-DIMM, up to 2 TB | EATX | Dual 10GbE LAN and WiFi 7 | — |
| ASUS Pro WS W680-ACE IPMI Inte | DDR5 with ECC memory support | ATX | Dual Intel 2.5Gb Ethernet | Intel LGA1700 |
| GIGABYTE X870E AORUS Xtreme X3 | DDR5, four DIMM slots, AMD EXPO support | E-ATX | — | AMD AM5 |
| ASUS Pro WS TRX50-SAGE WiFi A | DDR5 ECC R-DIMM; four slots; up to 1TB | CEB | 10Gb and 2.5Gb LAN; WiFi 7 | — |
More Details on Our Top Picks
GIGABYTE B860M AORUS Elite WIFI6E Motherboard
The micro-ATX footprint makes this the space-conscious choice in this group, while its three M.2 slots and PCIe 5.0 support leave room for fast local storage and a capable accelerator. Its Intel Core Ultra Series 2 platform is newer than the ASUS Pro WS W680-ACE’s 12th- and 13th-Gen Intel platform, but the W680-ACE offers a more workstation-focused feature mix, including ECC support. This GIGABYTE board makes more sense for a compact single-GPU AI desktop than a multi-accelerator training system. Wi-Fi 6E and 2.5GbE provide useful network choices, though neither replaces faster wired networking when moving large datasets across a lab. Its four DDR5 DIMM slots add flexibility, but the available data does not specify maximum memory capacity or ECC support.
Pros:- Micro-ATX form factor suits smaller workstation cases
- Three M.2 slots and PCIe 5.0 support fast storage and expansion
- Four DDR5 DIMM slots offer memory configuration flexibility
- Built-in Wi-Fi 6E and 2.5GbE LAN provide wired and wireless networking
Cons:- LGA 1851 limits processor choice to compatible Intel Core Ultra Series 2 CPUs
- No ECC memory support or maximum memory capacity is specified in the provided data
- The supplied specifications do not establish multi-GPU slot capacity
Best for: Builders fitting an Intel Core Ultra Series 2, single-GPU AI workstation into a micro-ATX case who want multiple M.2 drives and built-in wireless.
Not ideal for: AI researchers planning multiple large accelerator cards, ECC memory, or high-speed 10GbE networking; this board’s compact layout and stated connectivity are less suited to those needs.
- Form factor:Micro-ATX
- Socket:LGA 1851
- Processor compatibility:Intel Core Ultra Series 2
- Memory:DDR5, 4 DIMMs
- VRM:12+1+2+1 phases, 60A DrMOS
- Expansion and storage:PCIe 5.0, 3 M.2 slots
- Networking:Wi-Fi 6E, 2.5GbE LAN
- Other connectivity:USB-C
Our verdict“Choose this board for a compact, single-GPU Intel Core Ultra AI workstation, not an ECC-focused or multi-GPU system.”
ASUS Pro WS WRX90E-SAGE SE EEB Workstation Motherboard
For AI workloads that need several full-size accelerators, the seven PCIe 5.0 x16 slots set this board apart from every other product in this batch. Its sTR5 socket supports Threadripper PRO 7000 WX-Series processors, and up to 2TB of ECC DDR5 R-DIMM memory suits large datasets and demanding professional workloads. Compared with the ASUS Pro WS W680-ACE, this is a much larger, higher-capacity platform rather than a conventional desktop workstation board. Dual 10Gb LAN, four M.2 slots, USB4, SlimSAS, and IPMI add useful links for storage and remote administration. That capability comes with substantial system demands: an EEB board, workstation-class CPU, and multi-GPU setup require a roomy chassis, strong power delivery, and careful build planning. It is excessive for a single-GPU desktop AI project.
Pros:- Seven PCIe 5.0 x16 slots provide extensive multi-GPU expansion
- Supports up to 2TB of ECC DDR5 R-DIMM memory
- Dual 10Gb LAN, USB4, four M.2 slots, and SlimSAS offer broad connectivity
- Dedicated IPMI management supports remote monitoring and administration
Cons:- EEB form factor requires a compatible large chassis
- Requires a Threadripper PRO 7000 WX-Series processor and registered ECC memory
- Multi-GPU capacity can demand substantial system power, cooling, and build planning
Best for: AI labs and professional builders assembling Threadripper PRO systems with multiple accelerators, large ECC memory pools, and remote management needs.
Not ideal for: Home builders planning a single-GPU workstation or using a standard ATX case; this EEB platform’s size and high-capacity feature set are unnecessary for those systems.
- Form factor:EEB
- Socket and chipset:sTR5, AMD WRX90
- Processor compatibility:AMD Ryzen Threadripper PRO 7000 WX-Series
- Memory:8 slots; up to 2TB ECC DDR5 R-DIMM
- Expansion:7 PCIe 5.0 x16 slots
- Storage:4 M.2 slots, SlimSAS NVMe, 4 SATA ports
- Networking:Dual 10Gb LAN and 2.5Gb LAN
- Management and I/O:IPMI with AST2600 BMC, 2 rear USB4 40Gbps Type-C ports
- Power design:32 power stages; two 8-pin CPU power connectors
Our verdict“Pick this board when your AI workload calls for several GPUs, terabytes of ECC memory, and workstation-grade remote management.”
ASUS Pro WS W680-ACE ATX Workstation Motherboard
The W680 workstation chipset and ECC memory support make this a more conservative, reliability-oriented Intel choice than the gaming-oriented ASUS X870 MAX. It pairs 12th- and 13th-Gen Intel CPUs with up to 128GB of DDR5, providing a practical base for AI development, inference, and smaller model work where validated memory behavior matters more than extreme GPU count. Two PCIe 5.0 slots and three M.2 drives allow a primary accelerator plus additional expansion and fast local storage, while dual 2.5Gb Ethernet helps connect to a NAS or lab network. The tradeoff is capacity: the ASUS WRX90E-SAGE SE supports up to 2TB of ECC R-DIMM, far beyond this board’s 128GB ceiling. Thunderbolt 4 also needs a compatible add-on card, so it is not an out-of-box port feature.
Pros:- ECC memory support adds a workstation-oriented option for data integrity
- Two PCIe 5.0 slots support accelerator and expansion planning
- Three PCIe 4.0 M.2 slots provide fast local storage capacity
- Dual 2.5Gb Ethernet and SlimSAS support useful workstation connectivity
Cons:- Maximum memory capacity is 128GB, well below the WRX90E-SAGE SE
- Supports only 12th- and 13th-Gen Intel processors on LGA 1700
- Thunderbolt 4 requires a compatible add-on card
Best for: Developers and small studios building an ECC-capable Intel workstation for AI inference, model development, or moderate GPU workloads.
Not ideal for: Teams training large models across multiple GPUs or needing more than 128GB of system memory; the WRX90E-SAGE SE is better suited to that scale.
- Form factor:ATX
- Chipset and socket:Intel W680, LGA 1700
- Processor compatibility:12th- and 13th-Gen Intel Core, Pentium Gold, and Celeron
- Memory:DDR5 DIMM, 4 slots, up to 128GB; ECC supported
- Expansion slots:2 PCIe 5.0 and 2 PCIe 3.0
- M.2 storage:3 PCIe 4.0 M.2 slots
- Networking:2 x 2.5Gb Ethernet
- Storage connectivity:SlimSAS and SATA 3
- USB and add-on support:Front USB 3.2 Gen 2×2 Type-C; Thunderbolt 4 header
Our verdict“Choose the W680-ACE for an ECC-capable, standard-size Intel workstation when 128GB of memory and a modest accelerator setup are enough.”
ASUS X870 MAX Gaming Wi-Fi 7 AMD AM5 ATX Motherboard
This board suits builders who want an AM5 desktop that handles gaming alongside AI development, rather than a dedicated workstation platform. Support for Ryzen 7000, 8000, and 9000 processors, PCIe 5.0, three M.2 slots, USB4, and Wi-Fi 7 make it a modern base for a single-accelerator system with quick local storage. Compared with the ASUS Prime X870-P WiFi, the X870 MAX adds a clearly gaming-focused presentation, including Aura Sync RGB and Q-Release, while both list Wi-Fi 7 and high-speed USB connectivity. Its 12+2+1 80A power stages and substantial heatsinks support demanding desktop components, but the supplied specs do not describe ECC memory or multiple full-length GPU slots. Wi-Fi 7’s full functionality also depends on Windows 11 24H2 or later, which may matter in managed environments.
Pros:- Supports Ryzen 7000, 8000, and 9000 processors on AM5
- PCIe 5.0 and three M.2 slots support fast accelerator and storage configurations
- Wi-Fi 7, 2.5Gb LAN, USB4, and USB-C 20Gbps provide versatile connectivity
- VRM and M.2 heatsinks help manage heat under sustained desktop workloads
Cons:- Gaming-focused feature set does not specify ECC memory or workstation management
- Only one PCIe 5.0 x16 slot is listed, limiting documented GPU expansion
- Full Wi-Fi 7 functionality requires Windows 11 24H2 or later
Best for: AM5 builders who want one system for gaming, AI development, and single-GPU inference, with modern USB and wireless connectivity.
Not ideal for: AI teams needing ECC memory, multi-GPU expansion, or a workstation board with remote management; this model is positioned around a general-purpose gaming desktop.
- Form factor:ATX
- Socket:AMD AM5
- Processor compatibility:AMD Ryzen 9000, 8000, and 7000 Series
- Memory:DDR5
- Power stages:12+2+1, 80A DrMOS
- Expansion and storage:PCIe 5.0 x16, 3 M.2 slots
- Networking:Wi-Fi 7, 2.5Gb LAN
- USB connectivity:USB4 Type-C and USB-C 20Gbps
- Cooling and build features:VRM, M.2, and PCH heatsinks; BIOS Flashback; Q-Release
Our verdict“Choose the X870 MAX if you want a modern AM5 gaming PC that can also handle single-GPU AI work, rather than a dedicated training workstation.”
ASUS Prime X870-P WiFi AMD AM5 Motherboard
The Prime X870-P WiFi is the more practical AM5 pick for builders who value setup aids and broad everyday connectivity over gaming-oriented styling. Its 14+2+1 80A power stages, PCIe 5.0 graphics slot, and PCIe 5.0 M.2 support give a Ryzen-based single-GPU AI desktop a strong foundation, while Wi-Fi 7 and 2.5Gb Ethernet offer flexible networking. Compared with the ASUS X870 MAX, it emphasizes hands-on build conveniences such as Q-Latch, Q-Release, Q-LED, and BIOS FlashBack, which can simplify assembly and troubleshooting. USB4 and front USB-C add useful high-speed device connections. Neither board is presented as a multi-GPU or ECC workstation platform, so this is better matched to development and inference than large-scale training. The supplied product data does not state memory capacity or the number of M.2 slots.
Pros:- Q-Latch, Q-Release, Q-LED, and BIOS FlashBack support easier assembly and troubleshooting
- 14+2+1 80A power stages provide substantial CPU power delivery
- PCIe 5.0 graphics and M.2 support suit fast single-GPU and storage configurations
- Wi-Fi 7, 2.5Gb Ethernet, USB4, and front USB-C offer broad connectivity
Cons:- The supplied specifications do not state maximum memory capacity or DIMM count
- No ECC memory support or multi-GPU slot configuration is specified
- Requires an AMD AM5 processor and does not suit Intel-based builds
Best for: First-time or experienced AM5 builders assembling a single-GPU AI desktop who want straightforward component installation, troubleshooting aids, and current connectivity.
Not ideal for: Workstation buyers who require documented ECC support, several accelerator slots, or a specified high-capacity memory configuration; consider a purpose-built workstation platform instead.
- Socket:AMD AM5
- Processor compatibility:AMD Ryzen processors
- Memory:DDR5
- Power stages:14+2+1, 80A DrMOS
- Expansion and storage:PCIe 5.0 x16 and PCIe 5.0 M.2 support
- Networking:Wi-Fi 7 and Realtek 2.5Gb Ethernet
- USB connectivity:USB4, USB Type-C, front USB 10Gbps Type-C, rear USB 10Gbps Type-A
- Cooling:Large VRM heatsink, dual M.2 heatsinks, PCH heatsink
- Build features:Pre-mounted I/O shield, Q-Antenna, Q-Release, M.2 Q-Latch, BIOS FlashBack, Q-Dashboard, Q-LED
Our verdict“Pick the Prime X870-P WiFi for a DIY-friendly, single-GPU AM5 AI desktop with current connectivity, not an ECC or multi-accelerator workstation.”

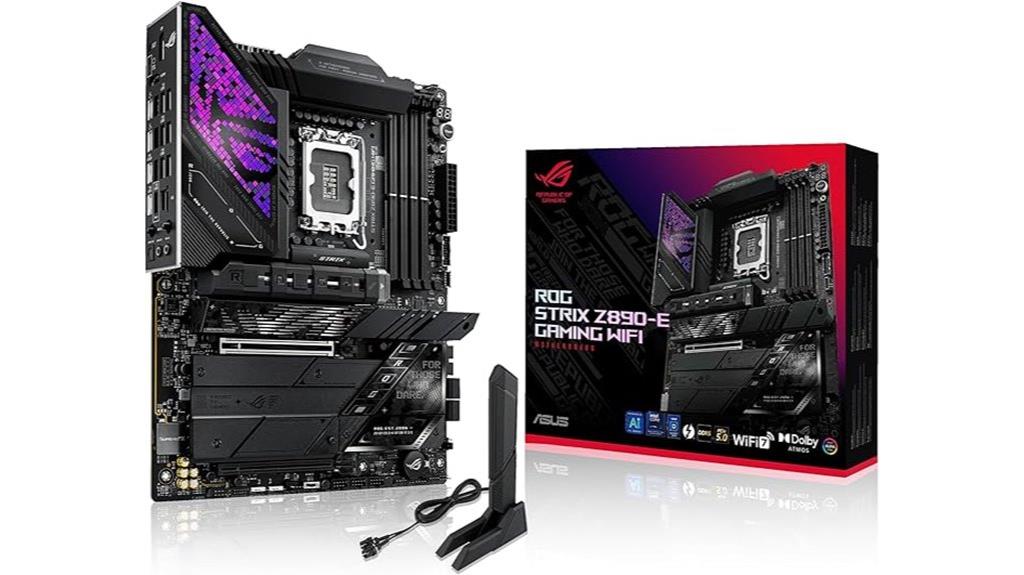

ASUS ROG Strix Z890-E Gaming WiFi Motherboard
The ROG Strix Z890-E fits AI builders who want a high-end desktop that can also serve as a gaming system. Its support for Intel Core Ultra Series 2, seven M.2 slots, and Thunderbolt connectivity gives a builder room for fast local datasets and peripherals without stepping up to workstation-class Threadripper hardware. Compared with the creator-focused ASUS ProArt Z890-CREATOR WIFI, this board offers a more gaming-oriented identity and the listed AI Overclocking, Cooling, and Networking features, while the ProArt model specifies Thunderbolt 5, 10Gb Ethernet, and creator-oriented connectivity.
The tradeoff is that AI features do not replace workload-specific GPU lanes, memory capacity, or remote-management functions. This is a feature-rich consumer platform, and its complex setup may not suit a first-time builder. I would choose it for a capable single-system build, not for an enterprise-style multi-GPU workstation.
Pros:- Supports Intel Core Ultra Series 2 processors on LGA 1851.
- Seven M.2 slots give substantial room for fast local storage.
- WiFi 7 and Thunderbolt support provide versatile connectivity.
- AI Overclocking, AI Cooling, and AI Networking add automated tuning options.
Cons:- Complex setup can be challenging for less experienced builders.
- Its feature set is geared toward an enthusiast desktop rather than specialized workstation management.
- The listed information does not specify multi-GPU lane configuration or maximum memory capacity.
Best for: Intel Core Ultra builders who want a powerful gaming-and-AI desktop with several high-speed M.2 drives and Thunderbolt connectivity.
Not ideal for: Buyers building a managed, multi-GPU workstation or those who want a simpler setup; the listed features emphasize enthusiast desktop use rather than remote administration.
- Socket:LGA 1851
- Supported processors:Intel Core Ultra Series 2
- Memory:DDR5
- M.2 slots:7
- Wireless:WiFi 7
- Thunderbolt:Yes
- Power stages:18+2+1+2
- AI features:AI Overclocking, AI Cooling, AI Networking
Our verdict“Choose the Z890-E for an Intel Core Ultra AI desktop that also prioritizes gaming features and abundant M.2 storage.”
GIGABYTE B850 AI TOP ATX Motherboard for AMD AM5
The GIGABYTE B850 AI TOP is the practical AM5 choice for builders who want current Ryzen support without moving to a Threadripper platform. It accepts Ryzen 7000, 8000, and 9000 processors, supports up to 256 GB of DDR5, and pairs three M.2 slots with PCIe 5.0, WiFi 7, and 10GbE. That combination can suit a local AI workstation with one or a small number of GPUs, fast storage, and a wired network connection for moving datasets. Compared with the GIGABYTE TRX50 AI TOP, it is a more conventional ATX build with a much lower memory ceiling, but avoids the specialized sTR5 processor and platform requirements.
Its main compromise is expansion: three M.2 slots and a consumer AM5 platform offer less headroom than the TRX50 board’s eight memory slots and 2 TB ECC R-DIMM capacity. USB-C speed also varies by processor, so check CPU-specific support before planning around it. This makes sense for an AM5 build, not a large-memory, multi-accelerator system.
Pros:- Broad compatibility with AMD Ryzen 7000, 8000, and 9000 processors.
- Four DDR5 DIMM slots support up to 256 GB of memory.
- PCIe 5.0, three M.2 slots, WiFi 7, and 10GbE cover useful build and networking needs.
- VRM and M.2 thermal guards help manage heat around power delivery and storage.
Cons:- Its 256 GB memory ceiling is far below the 2 TB capacity of the TRX50 AI TOP.
- Three M.2 slots may constrain builds with several local datasets or scratch drives.
- USB-C speeds depend on the installed processor.
Best for: AM5 builders pairing a Ryzen 7000, 8000, or 9000 processor with one main AI accelerator, up to 256 GB of memory, and 10GbE networking.
Not ideal for: AI teams needing terabytes of ECC memory or extensive workstation expansion; the TRX50 AI TOP is better suited to those requirements.
- Form factor:ATX
- Socket and chipset:AM5, AMD B850
- Supported processors:AMD Ryzen 7000, 8000, and 9000 Series
- Memory:4 DDR5 DIMM slots, up to 256 GB
- Memory speed:Up to 8600 MT/s+
- Power design:16+2+2 phases, 110A Smart Power Stage
- Storage:3 M.2 slots
- Connectivity:PCIe 5.0, USB-C, WiFi 7, 10GbE
Our verdict“Pick this board for a capable Ryzen AM5 AI build that values 10GbE and modern storage without needing Threadripper-scale memory.”

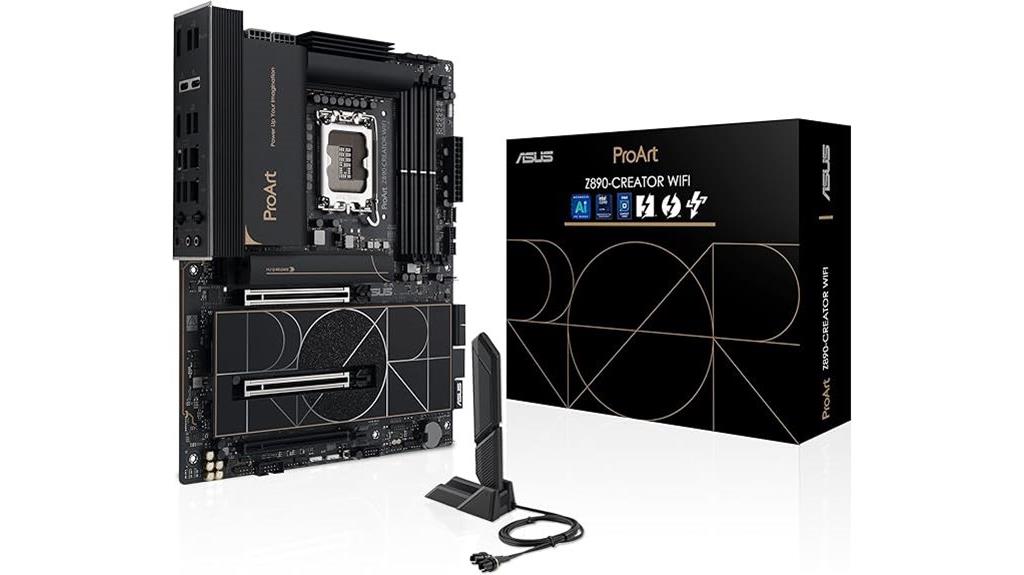

ASUS ProArt Z890-CREATOR WIFI Z890 LGA 1851 ATX Motherboard
The ASUS ProArt Z890-CREATOR WIFI is the clearest fit here for Intel-based AI workstations that move large files between fast external devices, local storage, and a wired network. Its dual Thunderbolt 5 ports, additional Thunderbolt 4 port, 10Gb and 2.5Gb Ethernet, WiFi 7, and five M.2 slots give creators multiple ways to connect equipment and keep working datasets close. Compared with the gaming-focused ROG Strix Z890-E, the ProArt board puts more emphasis on creator I/O and specifies PCIe 5.0 support for next-generation GPUs, while the Strix lists seven M.2 slots.
That makes this a better match for a workflow built around fast transfers and several storage drives than for someone chasing the largest possible M.2 count. It still uses the LGA 1851 Core Ultra platform, not the expansive Threadripper platform of the GIGABYTE TRX50 AI TOP, so it is not the pick for enormous ECC memory pools. Its many connection options may also be more than a single-GPU desktop needs.
Pros:- Dual Thunderbolt 5 plus a Thunderbolt 4 port support a broad range of fast peripherals.
- 10Gb and 2.5Gb Ethernet provide flexible wired networking.
- Five M.2 slots and multiple PCIe 5.0 connections suit storage-rich creator builds.
- Includes AI Overclocking, AI Cooling II, AI Networking II, AI Advisor, and NPU Boost features.
Cons:- Its LGA 1851 platform has less memory and expansion headroom than the TRX50 AI TOP.
- The extensive creator connectivity may be unnecessary for a simpler single-GPU build.
- The supplied product data does not state a maximum memory capacity.
Best for: Intel Core Ultra creators and AI developers who regularly connect high-speed peripherals, use fast wired networking, and need multiple NVMe drives.
Not ideal for: Builders planning a very large ECC memory pool or a Threadripper-class multi-accelerator system; this is an ATX Core Ultra board.
- Socket:LGA 1851
- Supported processors:Intel Core Ultra Series 2
- Power stages:16+2+1+2
- Memory:DDR5
- Expansion:Two PCIe 5.0 slots and one additional PCIe 5.0 connection
- Storage:5 M.2 slots
- Thunderbolt:Dual Thunderbolt 5 and one Thunderbolt 4 port
- Networking:10Gb and 2.5Gb Ethernet, WiFi 7
Our verdict“Choose the ProArt Z890-CREATOR WIFI when fast creator I/O and wired networking matter more than Threadripper-scale memory capacity.”
ASUS Pro WS B850M-ACE SE AMD AM5 B850 MicroATX Business Motherboard
The ASUS Pro WS B850M-ACE SE stands out for AI systems that need business-style remote oversight in a compact MicroATX footprint. Support for Ryzen 9000, 8000, and 7000 processors, along with listed compatibility for AMD EPYC 4005 Series, gives buyers flexibility across supported AM5 processors. Its onboard BMC AST2600 and ASUS Control Center Express can help administrators monitor and manage a system remotely, a different priority from the gaming and creator extras on the ROG Strix Z890-E and ProArt Z890-CREATOR WIFI.
The board also lists two PCIe 5.0/4.0 x16 slots, a PCIe 5.0 x4 slot, two PCIe 5.0 M.2 slots, 10G and 2.5G LAN, and USB4. That makes it a distinctive fit for managed, space-conscious deployments, though MicroATX can limit room for add-in cards compared with full-size boards. Buyers should also expect a more business-oriented setup than a straightforward consumer build; it is not my pick for someone who wants maximum expansion.
Pros:- Onboard BMC AST2600 and ASUS Control Center Express support remote system management.
- Supports listed Ryzen 9000, 8000, and 7000 Series and EPYC 4005 Series processors.
- 10G and 2.5G LAN suit data-heavy network environments.
- Two PCIe 5.0 x4 M.2 slots provide fast local storage options.
Cons:- MicroATX dimensions restrict expansion room compared with ATX and EATX options.
- Its business-management feature set may add setup complexity for home builders.
- Two M.2 slots offer less storage expansion than the five on the ProArt Z890-CREATOR WIFI.
Best for: IT administrators or small labs building a compact AMD system that needs remote management, fast networking, and compatibility with listed Ryzen or EPYC 4005 processors.
Not ideal for: Builders who need many expansion cards or a roomy multi-GPU layout; a larger workstation board such as the TRX50 AI TOP offers a more expansive platform.
- Form factor:MicroATX
- Socket:AMD AM5
- Supported processors:AMD Ryzen 9000, 8000, and 7000 Series; AMD EPYC 4005 Series
- PCIe slots:2 x PCIe 5.0/4.0 x16; 1 x PCIe 5.0 x4
- Storage:2 x PCIe 5.0 x4 M.2
- Networking:10G and 2.5G LAN
- USB connectivity:USB4 and front USB 20Gbps Type-C
- Remote management:ASUS Control Center Express and onboard BMC AST2600
Our verdict“Choose this board for a compact AMD AI system where remote management matters more than maximum expansion.”
GIGABYTE TRX50 AI TOP sTR5 AMD TRX50 EATX Motherboard
The GIGABYTE TRX50 AI TOP is the specialist choice in this group for AI workloads that need far more system memory and platform capacity than a mainstream desktop can provide. It supports Ryzen Threadripper 7000 processors and up to 2 TB of DDR5 ECC R-DIMM across eight slots, creating room for large datasets and memory-heavy workloads. Dual USB4 Type-C, WiFi 7, and dual 10GbE LAN also make it better equipped for demanding storage and network setups than the AM5-based B850 AI TOP, which tops out at 256 GB.
That extra capacity comes with real build constraints: this is an EATX board requiring a compatible case and a specific Threadripper processor, not a drop-in upgrade for a typical Ryzen desktop. Its platform is compelling when memory and workstation connectivity justify the larger system, but excessive for a compact or entry-level AI build. Compared with the ProArt Z890-CREATOR WIFI, it trades Intel Core Ultra compatibility for a much higher memory ceiling.
Pros:- Supports up to 2 TB of DDR5 ECC R-DIMM across eight memory slots.
- Dual 10GbE LAN and WiFi 7 support demanding network workflows.
- Dual USB4 Type-C ports provide high-speed peripheral connectivity.
- PCIe 5.0 and thermal armor suit high-load workstation components.
Cons:- EATX size requires a compatible, spacious case.
- Requires a Ryzen Threadripper 7000 processor rather than a standard desktop CPU.
- Its specialized platform is excessive for AI builds that do not need high memory capacity or workstation expansion.
Best for: AI professionals and workstation builders using Ryzen Threadripper 7000 who need ECC R-DIMM capacity up to 2 TB and dual 10GbE.
Not ideal for: Mainstream Ryzen or Intel builders, compact PC owners, and anyone without an EATX-compatible case; the platform needs specific high-end Threadripper hardware.
- Socket and chipset:sTR5 (LGA 4844), AMD TRX50
- Supported processors:AMD Ryzen Threadripper 7000 Series
- Form factor:EATX
- Memory:DDR5 ECC R-DIMM, up to 2 TB
- Memory slots and speed:8 slots, 5200 MHz
- Expansion:PCIe 5.0
- USB:Dual USB4 Type-C
- Networking:Dual 10GbE LAN and WiFi 7
Our verdict“Choose the TRX50 AI TOP when Threadripper performance, ECC memory capacity, and fast networking justify a large specialized workstation.”
ASUS Pro WS W680-ACE IPMI Intel LGA1700 ATX workstation motherboard
I’d choose the W680-ACE IPMI for an AI workstation that needs remote oversight without moving to a Threadripper platform. Its LGA1700 support for 12th- and 13th-generation Intel processors, ECC memory support, and bundled IPMI expansion card suit a managed inference or development machine that may run unattended. Two PCIe 5.0 x16 slots give GPU expansion room, while three PCIe 4.0 M.2 slots and SlimSAS add options for fast local storage.
Compared with the ASUS Pro WS TRX50-SAGE WiFi A, this is a more conventional ATX Intel build, but it cannot match that board’s Threadripper memory capacity or PCIe 5.0 slot count. Its two 2.5Gb Ethernet ports are useful for network flexibility, though they are not a substitute for the TRX50’s 10Gb LAN. Choose it for manageable scale; skip it if your AI workload needs several accelerator cards or very large ECC memory capacity.
Pros:- Bundled IPMI expansion card supports remote workstation management.
- Two PCIe 5.0 x16 slots provide room for GPU and accelerator expansion.
- ECC memory support suits builds where data integrity matters.
- Three PCIe 4.0 M.2 slots plus SlimSAS offer flexible local storage.
Cons:- LGA1700 processor support limits the platform to 12th- and 13th-generation Intel CPUs.
- Two 2.5Gb Ethernet ports lack the 10Gb networking offered by the TRX50-SAGE.
- Two PCIe 5.0 x16 slots offer less expansion headroom than high-end Threadripper workstation boards.
Best for: Builders creating a remotely managed Intel workstation for model development or inference, with one or two expansion cards and ECC memory support.
Not ideal for: AI researchers planning a many-GPU system or large memory-resident workloads; its LGA1700 platform and two PCIe 5.0 x16 slots are less expansive than the Threadripper-based TRX50 options.
- Socket:Intel LGA1700
- Supported processors:12th- and 13th-generation Intel Core, Pentium Gold, and Celeron
- Form factor:ATX
- Memory:DDR5 with ECC memory support
- Expansion slots:Two PCIe 5.0 x16 and two PCIe 3.0 slots
- M.2 storage:Three PCIe 4.0 M.2 slots
- Networking:Dual Intel 2.5Gb Ethernet
- Management and connectivity:Bundled IPMI expansion card; Thunderbolt 4 header support; SlimSAS
Our verdict“Choose this board for a remotely managed Intel AI workstation with moderate expansion needs, not a high-memory, multi-accelerator build.”
GIGABYTE X870E AORUS Xtreme X3D AI TOP AMD AM5 Motherboard
The X870E AORUS Xtreme X3D AI TOP makes sense for a powerful single-GPU AI workstation that also needs fast storage and modern peripheral connections. Its AM5 socket supports Ryzen 7000, 8000, and 9000 processors, while two PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots leave substantial room for datasets, checkpoints, and scratch drives. USB4 and numerous USB-C options make it easier to attach high-speed external storage or docks.
Compared with the ASUS Pro WS W680-ACE IPMI, this board is built around newer AMD desktop CPUs and offers a richer M.2 and USB setup, but it lacks the stated IPMI management focus. Its single PCIe 5.0 x16 slot also makes it a less compelling base for multi-GPU expansion than workstation platforms such as the ASUS Pro WS TRX50-SAGE WiFi A. The E-ATX footprint and premium-oriented feature set call for a roomy case and a deliberate budget.
Pros:- Supports Ryzen 7000, 8000, and 9000 processors on AM5.
- Five M.2 slots, including two PCIe 5.0 slots, enable extensive high-speed storage.
- USB4 Type-C and additional USB-C connectivity suit fast external storage and peripherals.
- 24+2+2 power phase design and substantial heatsinks are suited to demanding desktop CPUs.
Cons:- Only one PCIe 5.0 x16 slot limits straightforward multi-GPU expansion.
- E-ATX dimensions require a compatible, larger workstation case.
- Its high-end feature set may be excessive for budget-conscious AI development builds.
Best for: AI developers building a high-performance Ryzen desktop for single-GPU training or inference, with several fast NVMe drives and USB4 peripherals.
Not ideal for: Buyers planning multiple full-size accelerator cards, remote server-style management, or a compact case; the single PCIe 5.0 x16 slot and E-ATX dimensions work against those goals.
- Socket:AMD AM5
- Supported processors:AMD Ryzen 9000, 8000, and 7000 series
- Form factor:E-ATX
- Memory:DDR5, four DIMM slots, AMD EXPO support
- Power phase:24+2+2
- Expansion:One PCIe 5.0 x16 slot
- M.2 slots:Two PCIe 5.0 and three PCIe 4.0
- USB connectivity:Two USB4 Type-C ports, plus USB 3.2 Gen 2 and Gen 2×2 ports
Our verdict“Pick this for a feature-rich, single-GPU Ryzen AI workstation with extensive NVMe storage, but choose a Threadripper board for multi-card expansion.”
ASUS Pro WS TRX50-SAGE WiFi A Workstation Motherboard
For an AI build where accelerator expansion and system memory matter more than a mainstream desktop platform, I’d put the Pro WS TRX50-SAGE WiFi A ahead of the other two picks. Its Socket TR5 support covers Threadripper and Threadripper PRO families, and the board accepts up to 1TB of DDR5 ECC R-DIMM memory. Three PCIe 5.0 x16 slots provide a stronger foundation for multiple GPUs or other high-bandwidth cards than the single PCIe 5.0 x16 slot on the GIGABYTE X870E AORUS Xtreme X3D AI TOP.
Four M.2 slots, two USB4 ports, WiFi 7, and 10Gb plus 2.5Gb LAN round out a workstation-focused platform. IPMI expansion-card support adds remote management options, although it is not the same as choosing a simpler desktop board such as the W680-ACE IPMI. The tradeoff is substantial platform commitment: Threadripper CPUs, ECC R-DIMM memory, a CEB-compatible case, and suitable power and cooling are required.
Pros:- Supports Threadripper and Threadripper PRO processors for high-core-count workstation builds.
- Up to 1TB of DDR5 ECC R-DIMM memory supports large datasets and memory-heavy workloads.
- Three PCIe 5.0 x16 slots offer more accelerator expansion than the AM5 AORUS board.
- Combines four M.2 slots, USB4, WiFi 7, 10Gb LAN, and 2.5Gb LAN.
Cons:- Requires Socket TR5 processors and DDR5 ECC R-DIMM memory.
- CEB form factor and extensive expansion needs call for a compatible case and robust system power planning.
- IPMI remote management depends on expansion-card support rather than being presented as a simple out-of-box desktop feature.
Best for: AI researchers and workstation builders using Threadripper who need multiple PCIe 5.0 cards, large ECC memory capacity, and fast wired networking.
Not ideal for: Mainstream Ryzen builders or first-time AI PC owners seeking a low-complexity parts list; Socket TR5, ECC R-DIMM memory, and CEB case compatibility narrow the choices.
- Socket and chipset:Socket TR5; AMD TRX50
- Supported processors:AMD Ryzen Threadripper PRO 9000 and 7000 WX-Series; Ryzen Threadripper 9000 and 7000 Series
- Form factor:CEB
- Memory:DDR5 ECC R-DIMM; four slots; up to 1TB
- Expansion slots:Three PCIe 5.0 x16 and one PCIe 4.0 x16
- M.2 storage:Four M.2 slots
- Networking:10Gb and 2.5Gb LAN; WiFi 7
- USB and remote management:Two USB4 ports up to 40Gbps; ASUS IPMI expansion card support
Our verdict“Choose the TRX50-SAGE WiFi A for a Threadripper AI workstation that needs multi-card expansion and very large ECC memory capacity.”

How We Picked
I ranked these boards by how well their platform, expansion, memory support, and connectivity line up with real AI-build needs. The largest weight went to usable GPU expansion: slot count alone does not tell the whole story, so lane layout, physical spacing, and the processor platform matter too. I also looked at ECC support and memory type, M.2 capacity, networking, management tools, and the practical demands of assembling and maintaining a workstation.
The order favors dedicated workstation platforms when the goal is multi-GPU compute, large memory capacity, or system management. That puts WRX90 and TRX50 ahead of mainstream AM5 and Intel boards for demanding accelerator builds. Creator and gaming boards remain useful choices for single-GPU systems or mixed workloads, but they rank lower when their expansion or memory features are less tailored to workstation use. I also treated advertised AI features as secondary to the board’s actual platform capabilities; a label cannot replace adequate lanes, cooling, and power delivery.
| workstation motherboards for ai build | Socket |
|---|---|
| GIGABYTE B860M AORUS Elite WIF | LGA 1851 |
| ASUS Pro WS WRX90E-SAGE SE EEB | — |
| ASUS Pro WS W680-ACE ATX Works | — |
| ASUS X870 MAX Gaming Wi-Fi 7 A | AMD AM5 |
| ASUS Prime X870-P WiFi AMD AM5 | AMD AM5 |
| ASUS ROG Strix Z890-E Gaming W | LGA 1851 |
| GIGABYTE B850 AI TOP ATX Mothe | — |
| ASUS ProArt Z890-CREATOR WIFI | LGA 1851 |
| ASUS Pro WS B850M-ACE SE AMD A | AMD AM5 |
| GIGABYTE TRX50 AI TOP sTR5 AMD | — |
| ASUS Pro WS W680-ACE IPMI Inte | Intel LGA1700 |
| GIGABYTE X870E AORUS Xtreme X3 | AMD AM5 |
| ASUS Pro WS TRX50-SAGE WiFi A | — |
Factors to Consider When Choosing Workstation Motherboards For Ai Builds
Before choosing a board, start with the hardware and workload you need to support, not a feature label or chipset tier. I’d map the GPUs, memory capacity, storage, and network connections first, then check whether the board can host them together without unwanted compromises.
Count usable GPU lanes, not just long slots
A full-length PCIe slot may run at fewer lanes than its physical size suggests, and some slots share bandwidth with storage or other devices. Check the motherboard manual’s slot-configuration table against the processor you plan to install; CPU lane counts can change the available layout. For multiple accelerators, also verify slot spacing against the cooler width, power cables, and airflow path. A board with several slots can still be a poor multi-GPU choice if neighboring cards choke each other or block required connectors. Avoid assuming that every PCIe 5.0 x16-shaped slot operates at x16. If your model training or inference workload uses one GPU, a simpler board can free budget for memory, storage, or a stronger power supply.
Match memory support to the model and platform
AI workloads can strain system memory even when accelerator memory handles the main model weights. Plan capacity around data loading, preprocessing, simultaneous jobs, and the operating system rather than choosing memory only by speed. ECC support can reduce the risk of undetected memory errors during long-running jobs, but ECC type and compatibility depend on both the board and processor. Registered DIMMs are not interchangeable with ordinary unbuffered modules, so validate the CPU, board, and memory list as a set. A workstation platform may support far more memory than a mainstream desktop socket, but that capacity matters only if your workload uses it. Check the board manual and current vendor compatibility information before purchasing modules.
Treat power, cooling, and case fit as one design
Multiple GPUs and high-core-count processors create heat and sustained power demands that motherboard specifications alone do not solve. Confirm that the case supports the board’s form factor, card length, slot thickness, and required airflow direction. Review motherboard power connectors and provide enough PSU capacity and separate GPU power cabling for the actual accelerator configuration. Strong VRM hardware can help a CPU sustain heavy workloads, but poor case airflow can still raise temperatures across the board, memory, and storage. Large EEB and EATX boards may need a compatible chassis and can limit cable access in compact cases. Build a layout plan before ordering components, especially when using more than one accelerator.
Choose connectivity for your workflow, not for its headline
Fast networking can matter when datasets, checkpoints, or shared storage live on another machine, while local single-GPU work may need only a reliable Ethernet connection. Compare port speed with the switch, cables, and storage server you already own; a faster onboard port cannot improve a slower network path. Thunderbolt can simplify access to compatible external storage and peripherals, but it does not increase GPU compute capacity. Count M.2 slots alongside SATA and other expansion needs, and check whether any connectors disable one another when populated. For a system that needs remote administration, look for actual management support rather than assuming a workstation label includes it. Spend on connectivity that removes a real bottleneck in your setup.
Pick a platform for the next upgrade, too
AM5, Intel desktop platforms, TRX50, and WRX90 serve different ranges of processor, memory, and expansion needs. A mainstream platform can be a sensible starting point for one GPU, but it may leave less room for future accelerators or high-capacity memory. Moving to a workstation platform can add lanes and memory options, while also requiring a compatible processor, memory type, cooler, and case. Do not buy an expensive board on the assumption that a future CPU will fit: check socket support and firmware requirements for the processor you intend to use. Consider your likely system over its full service life, including storage and networking growth. Pay more when platform limits would force a rebuild; otherwise, use the less expensive tier that meets your stated workload.
Separate workstation reliability needs from AI branding
Names such as AI TOP or AI OC do not by themselves establish that a motherboard is suitable for a particular model-training setup. Look for concrete properties such as slot configuration, memory support, management features, and verified processor compatibility. For unattended or shared systems, remote monitoring and recovery can matter more than cosmetic extras or automatic tuning tools. For a personal development machine, easy assembly, a familiar desktop platform, and adequate storage may matter more than server-style management. Check the manufacturer’s documentation for BIOS updates, supported memory, and slot behavior before placing an order. The right board is the one that supports the complete system you will actually run.
Frequently Asked Questions
Do I need a Threadripper motherboard for an AI build?
No. A Threadripper platform makes the most sense when you need its greater expansion capacity, workstation memory options, or support for several accelerators and other PCIe devices. A single-GPU development system may work well on a mainstream AM5 or Intel board if its slot layout, memory capacity, and storage connections fit the workload. Compare the number of GPUs you plan to install with the processor’s available lanes and the board’s documented slot behavior. Also account for the rest of the platform, including CPU, memory type, cooler, and case. Buy into Threadripper for a specific expansion or capacity need, not simply because the build uses AI software.
Can these motherboards run two or more GPUs for model training?
Some are designed with much more multi-GPU expansion in mind than others, but a row of full-length slots does not guarantee that every card gets the bandwidth or physical clearance it needs. The WRX90 option is the most explicitly oriented toward many accelerators in this lineup, while the TRX50 models target a higher-expansion tier than the mainstream desktop boards. Check the manual for lane allocation with your chosen CPU and installed devices. Then confirm that the cards fit with adequate airflow, power delivery, and access to their connectors. Multi-GPU software support and model parallelism are separate questions that a motherboard cannot answer on its own.
Should I prioritize ECC memory for local AI work?
ECC is most compelling for long-running workloads, systems that run unattended, and jobs where memory errors could waste substantial compute time. It is not a substitute for backups or a guarantee that a model run will be error-free. Confirm whether the board supports the specific ECC memory type you intend to use and whether your chosen processor enables it; support can differ between registered and unbuffered modules. If your work is short-lived experimentation on a single desktop GPU, capacity and compatibility may matter more than ECC. For a shared or continuously running workstation, the error-correction and platform features can justify choosing a board built around them.
Is Thunderbolt or 10Gb Ethernet more useful for an AI workstation?
That depends on where your data and peripherals live. Thunderbolt can be useful for fast external storage and compatible docks, while 10Gb Ethernet can help when moving large datasets to a networked server or shared storage system. Neither feature makes the GPU itself faster, and each is only useful when the connected device and the rest of the connection path support it. If your data stays on local NVMe drives and you use one workstation, onboard networking beyond your actual network may offer little benefit. Choose the interface that addresses a current workflow bottleneck, then check whether the board’s other slots remain available for your planned devices.
What should I verify before buying a board for a multi-GPU build?
Start with the exact processor and motherboard manual, then confirm the number of available lanes and how they are divided among the slots. Measure GPU thickness and length against the case and the motherboard’s slot spacing, including room for power cables and intake airflow. Check the PSU’s capacity and connectors for every accelerator, plus the board’s memory type and supported capacity. Review whether M.2 drives, network cards, or other devices share lanes with the slots you need. Finally, confirm BIOS support for the processor and memory before assembly. These checks prevent a board that appears suitable on a product page from becoming a poor fit in the complete system.
Conclusion
For the best overall fit for a demanding multi-GPU AI workstation, I’d choose the ASUS Pro WS WRX90E-SAGE SE because its Threadripper Pro platform, seven PCIe 5.0 x16 slots, and ECC R-DIMM support address expansion and memory needs better than the mainstream options. For best value within a workstation platform, I’d compare the GIGABYTE TRX50 AI TOP and ASUS Pro WS TRX50-SAGE WiFi A against the exact processor and GPU layout you need; they offer a more focused step into Threadripper than WRX90. For a premium creator system, the ASUS ProArt Z890-CREATOR WIFI stands out for Thunderbolt 5, 10Gb networking, and five M.2 slots, though it is not a substitute for a high-lane-count multi-GPU platform. For beginners building a single-GPU system, I’d favor a mainstream AM5 or Intel board only after checking its memory and expansion limits, with the ASUS Prime X870-P WiFi or ASUS Pro WS W680-ACE ATX representing different desktop paths. For remote management and an Intel workstation, the ASUS Pro WS W680-ACE IPMI is the more specialized pick. Match the board to your actual accelerator count and memory plan first; that choice matters more than an AI-themed product name.
