If you’re trying to choose the best surge protectors for NEC 230.67 compliance in 2025, I recommend considering both Type 1 and Type 2 options depending on your needs. Type 1 panels are ideal for residential service entrances, while Type 2 devices suit downstream protection in homes or commercial spaces. High surge capacities, certifications, and installation ease matter. Keep watching to discover detailed comparisons and tips for selecting the perfect system for your setup.
Key Takeaways
- Understand the intended environment: Type 1 for residential service entrance; Type 2 for commercial load centers, ensuring proper NEC 230.67 compliance.
- Compare surge capacity: Type 2 offers higher surge current ratings, suitable for demanding environments, while Type 1 provides adequate residential protection.
- Evaluate installation ease: Type 2 panels are plug-in and easier to retrofit; Type 1 requires professional, high-voltage wiring at the service entrance.
- Check certifications and standards: Ensure devices are UL 1449 listed and meet NEC 2020/2023 updates for reliable NEC 230.67 compliance.
- Consider monitoring features: Type 2 often includes surge counters, alarms, and digital indicators for ongoing protection status management.
Leviton Type 1 Surge Protective Panel
If you’re looking for reliable surge protection for your home, the Leviton Type 1 Surge Protective Panel is an excellent choice because it’s designed specifically for residential applications and meets the strict requirements of NEC 230.67. It provides 120/240 VAC split-phase power with a capacity of 36kA per phase, safeguarding your electrical system from damaging voltage surges. The compact and easy-to-install design guarantees compliance with modern standards, and it diverts transient voltages away from sensitive electronics. Whether for new installations or upgrades, this panel offers dependable, code-compliant surge protection for your home’s electrical infrastructure.
Best For: homeowners seeking reliable, code-compliant surge protection for their residential electrical systems, including upgrades and new installations.
Pros:
- Specifically designed for residential applications, ensuring targeted protection
- Complies with NEC 230.67 and modern standards for safety and performance
- Compact, easy-to-install design suitable for various home setups
Cons:
- Limited to residential use; not suitable for commercial or industrial environments
- May require professional installation for optimal compliance and safety
- Provides protection only for the electrical system; additional measures may be needed for comprehensive surge mitigation
Leviton Type 1 Surge Protective Panel
The Leviton Type 1 Surge Protective Panel (SPD), model P2120-B, stands out as an ideal choice for residential and light commercial applications that require reliable voltage transient protection. It’s suitable for single, split, or three-phase setups and complies with NEC Article 230.67 for dwellings, dormitories, and hotels. With a 120/240 VAC split phase rating, it handles surge currents up to 25kA per mode and 50kA per phase. Its durable NEMA 4X plastic enclosure, LED monitoring, and UL 1449 listing make it a dependable, easy-to-install solution for safeguarding electrical systems against transient overvoltages.
Best For: homeowners and light commercial property managers seeking reliable surge protection compliant with NEC requirements for residential and small business electrical systems.
Pros:
- Meets NEC Article 230.67 standards for residential and commercial applications
- Durable NEMA 4X plastic enclosure with LED status monitoring and audible alarm
- High surge current capacity of 25kA per mode and 50kA per phase, ensuring robust protection
Cons:
- Relatively lightweight at just over 1 pound, which may impact mounting stability in some installations
- Limited to 120/240 VAC split phase configurations; not suitable for higher voltage or three-phase industrial setups
- Price and availability may vary, and the product ranks modestly in the Tools & Home Improvement category
Leviton Type 2 Surge Protective Panel
Designed specifically for commercial and industrial applications, the Leviton Type 2 Surge Protective Panel offers robust protection with a maximum surge current of 65kA per mode and 130kA per phase. It’s suitable for 120 VAC, single-phase systems in branch and main panels for light commercial settings, dormitories, hotels, and motels. The panel features a durable NEMA 4X-rated enclosure, thermally protected MOVs, LED status indicators, and an audible alarm. With a short circuit current rating of 200kA and UL certifications, it guarantees reliable surge suppression while fitting compact spaces. Since its release in late 2023, it’s gained positive reviews for performance and ease of use.
Best For: commercial and industrial facilities such as hotels, dormitories, and light commercial power panels requiring reliable surge protection for 120 VAC, single-phase systems.
Pros:
- High surge current capacity of up to 65kA per mode and 130kA per phase ensures robust protection.
- Durable NEMA 4X-rated enclosure allows for indoor use with excellent environmental resistance.
- Easy status monitoring with LED indicators and audible alarm enhances maintenance and reliability.
Cons:
- Limited to 120 VAC, single-phase applications; not suitable for three-phase or higher voltage systems.
- No built-in backup power or additional communication features for remote monitoring.
- Compact size may require careful installation in tight spaces.
ABB THQLSURGE2 Plug-On Surge Protective Device for Power Systems
The ABB THQLSURGE2 Plug-On Surge Protective Device stands out as an excellent choice for those seeking reliable whole-home or office surge protection. It’s designed to shield entire electrical systems from damaging power surges, enhancing the longevity of connected electronics. With pigtail connections, it’s easy to install at service entrances, subpanels, or inside PowerMark PRO load centers, offering versatile options. Equipped with LED indicators, it clearly shows operational status, and its surge capacity of up to 25kA per phase provides robust protection against severe voltage spikes. Compliant with NEC 2023 Article 230.67, the THQLSURGE2 guarantees your system’s safety and reliability.
Best For: homeowners and office managers seeking reliable, whole-system surge protection to safeguard electronics and electrical infrastructure.
Pros:
- Easy plug-on installation at service entrances, subpanels, or load centers
- Robust surge handling capacity of up to 25kA per phase
- Equipped with LED indicators for clear operational status
Cons:
- Designed primarily for whole-system protection, not individual devices
- Compatibility limited to PowerMark PRO load centers and similar systems
- May require professional installation for optimal placement and safety

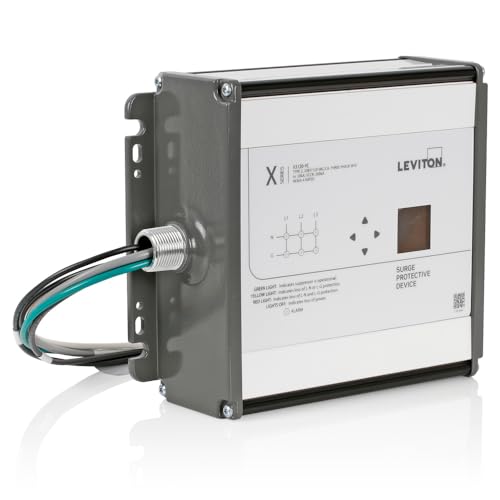

Leviton Type 2 Surge Protective Panel
If you’re seeking reliable surge protection that meets the latest NEC requirements, the Leviton Type 2 Surge Protective Panel (SPD) X2120-C stands out with its advanced monitoring features. Operating at 120/240 VAC with split phase, it delivers 400kA per phase, safeguarding your electronic devices from voltage surges. The LCD screen with surge counter provides real-time status updates, ensuring you’re always informed of its performance. Designed for both residential and commercial use, it complies with Article 230.67 of the 2020 NEC and the expanded 2023 NEC requirements. Durably built and feature-rich, the X2120-C offers peace of mind for modern surge protection needs.
Best For: Residential and commercial property owners seeking reliable, code-compliant surge protection with real-time monitoring features.
Pros:
- Advanced monitoring with LCD screen and surge counter for real-time status updates
- Meets current NEC requirements (2020 and 2023) for comprehensive surge protection
- High surge current capacity of 400kA per phase for robust device safeguarding
Cons:
- May require professional installation due to electrical code compliance
- Slightly higher cost compared to basic surge protectors with fewer features
- Limited to split phase 120/240 VAC applications; not suitable for single-phase or three-phase systems

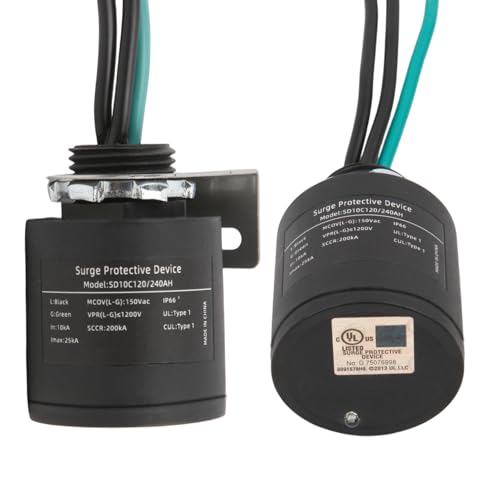

WeCooper Universal HVAC Surge Protective Device
For those seeking reliable surge protection for HVAC systems, the WeCooper Universal HVAC Surge Protective Device stands out with its robust 25kA surge handling capacity and UL 1449 4th edition certification. Designed for 1-phase, 3-wire setups, it supports nominal voltages of 120/240VAC and features TFMV technology for enhanced durability. Its IP66-rated enclosure makes it suitable for indoor and outdoor use, even in harsh environments. The device includes a visual LED indicator for quick status checks, ensuring continuous protection for heat pumps, compressors, and other critical equipment. Easy to install and backed by a strong warranty, it’s a dependable choice for safeguarding HVAC systems against power surges.
Best For: homeowners, HVAC technicians, and commercial property managers seeking reliable surge protection for HVAC systems and outdoor equipment.
Pros:
- Supports high surge capacity up to 25kA, offering robust protection for critical devices
- IP66-rated enclosure ensures durability and suitability for indoor and outdoor environments
- Easy to install with visual LED indicators for quick status verification
Cons:
- Limited to 1-phase, 3-wire systems, may not be compatible with multi-phase setups
- Slightly larger size may require space considerations during installation
- May be priced higher than basic surge protectors due to advanced features and certifications
Leviton Surge Protective Device with 2 Branch Circuit Breakers
Leviton’s Surge Protective Device with 2 Branch Circuit Breakers stands out for its straightforward plug-on design, making installation quick and hassle-free. It features two 20A 1-pole circuit breakers rated at 120/240 VAC, providing effective whole-home surge protection at the panel level. Its line-side connection guarantees continuous protection, even when breakers are off or tripped. The device uses thermal magnetic trip technology for reliable circuit safety, and LEDs clearly indicate protection status. Designed to meet 2020 NEC requirements, it’s ideal for safeguarding critical residential circuits and infrastructure, offering a simple yet effective solution for compliance and peace of mind.
Best For: homeowners and residential electricians seeking an easy-to-install, reliable surge protection solution for critical home circuits.
Pros:
- Simple plug-on installation similar to standard circuit breakers for quick setup
- Provides comprehensive Type-1 whole home surge protection at the panel level
- Equipped with LED indicators and thermal magnetic trip technology for safety and easy monitoring
Cons:
- Limited to two circuit breaker slots, which may not suit larger or more complex electrical systems
- Designed primarily for residential use, might not be suitable for commercial applications
- Requires a compatible panel system, so installation may be limited by existing panel configuration
THOMESURGEP SurgePro™ Surge Protective Device
Looking for a reliable Type 1 surge protector that’s easy to install and meets NEC 230.67 standards? The THOMESURGEP SurgePro™ by ABB is an excellent choice. This externally mounted SPD is designed for residential use, protecting homes from electrical surges and sensitive electronics. It offers 36kA per phase protection, a 200kA SCCR, and is compatible with 120/240V and 120/208V systems. Installation is straightforward, with no breaker space needed, and an LED indicator shows operational status. Certified to NEC 2023 standards, the SurgePro™ guarantees safety, reliability, and compliance, making it a top option for new construction or renovations.
Best For: homeowners and contractors seeking a reliable, easy-to-install Type 1 surge protector that complies with NEC 2023 standards for residential applications.
Pros:
- Easy to install without occupying breaker spaces, saving time and simplifying setup
- Provides robust protection with 36kA per phase and a 200kA SCCR for peace of mind
- LED indicator facilitates quick status checks and maintenance
Cons:
- Designed primarily for US outlets; international users may need adapters or converters
- As an external device, it may be visible on the exterior of the home, affecting aesthetics
- Requires authentic ABB products to ensure safety and compliance; counterfeit products pose risks
HVAC Surge Protector, Zuomeng 120/240VAC
The Zuomeng 120/240VAC HVAC Surge Protector stands out for its robust surge absorption capacity, handling up to 20kA to safeguard essential HVAC components from lightning strikes and power fluctuations. It supports both residential and commercial systems, including compressors, motors, and fans, with three protection modes—L-G, L-L, and L-N—fitting various wiring setups. Its built-in thermal protection enhances safety, while the waterproof IP65 rating and flame-retardant materials guarantee durability in harsh environments. Plus, the dual LED indicators make monitoring easy, and the side-threaded design simplifies installation, making it a reliable choice for long-term surge protection.
Best For: residential and commercial HVAC system owners seeking reliable surge protection for compressors, motors, and fans in harsh outdoor or high-temperature environments.
Pros:
- Absorbs up to 20kA surge, offering strong protection against lightning strikes and power spikes
- Supports multiple wiring configurations with three protection modes (L-G, L-L, L-N)
- Waterproof (IP65) and flame-retardant construction ensure durability in outdoor and demanding settings
Cons:
- Installation may require some technical knowledge due to wiring configurations
- Larger size or design specifics could be less suitable for very compact setups
- May need periodic monitoring of LED indicators to ensure continued protection
1+NPE Surge Protector 20KA-40KA for AC 220V/230V House Power Surge Protector
For homeowners and electricians seeking reliable surge protection, the NPE Surge Protector 20KA-40KA stands out as a top choice. It’s designed for household use with AC voltage compatibility up to 275V, providing robust surge protection ranging from 20KA to 40KA. Its two-pole design with RC enhances safety and reliability, and it’s easy to install on a Din rail system. Lightweight and compact, it fits seamlessly into residential electrical setups. With a warranty included and availability starting in November 2025, this surge protector offers an effective, dependable solution for safeguarding your home’s electrical system against power surges.
Best For: homeowners and electricians seeking reliable, high-capacity surge protection for household electrical systems up to 275V.
Pros:
- Provides robust surge protection with capacities ranging from 20KA to 40KA.
- Easy to install on Din rail systems, suitable for residential electrical setups.
- Lightweight and compact design for seamless integration into home environments.
Cons:
- Availability begins in November 2025, so immediate purchase may not be possible.
- Price and specific warranty details are not provided upfront and require inquiry.
- Compatibility limited to AC voltage up to 275V, so may not suit all electrical systems.
Type BR Whole-Panel Circuit Breaker Surge Protector
When selecting a surge protector for a whole-house application, the Type BR Whole-Panel Circuit Breaker Surge Protector stands out because of its robust surge mitigation capabilities and easy integration with existing load centers. It handles up to 18kA surge currents per phase and protects both L-N and L-L circuits, safeguarding appliances and electronics from voltage spikes. Compatible with 120/240V systems, it helps extend equipment lifespan by preventing damage. Its simple pigtail installation and clear status LED make setup and maintenance straightforward. UL-certified and backed by a one-year warranty, this device guarantees reliable, professional-grade protection for your entire electrical system.
Best For: homeowners seeking reliable, whole-house surge protection that easily integrates with existing electrical panels and provides comprehensive voltage surge mitigation.
Pros:
- Robust surge current handling up to 18kA per phase for enhanced protection
- Easy pigtail installation compatible with BR series panels
- UL-certified with a clear LED indicator for simple status monitoring
Cons:
- Limited to 1-year warranty, which may require additional protection plans for extended coverage
- Designed specifically for BR series panels, reducing compatibility with other panel types
- May require professional installation due to electrical integration needs
Factors to Consider When Choosing Type 1 Vs Type 2 Surge Protection NEC 230.67
When selecting between Type 1 and Type 2 surge protectors, I consider factors like installation complexity, surge capacity, and system compatibility to guarantee proper protection. I also check regulatory requirements to stay compliant and look for monitoring features that help track system performance. These points help me choose the right solution for my specific electrical setup and safety needs.
Installation Complexity
Choosing between Type 1 and Type 2 surge protectors often hinges on installation complexity, as each option involves different levels of effort and expertise. Type 1 devices are installed at the service entrance, requiring more extensive wiring and professional installation due to their high capacity and location. Working with high-voltage wiring and adhering to strict safety protocols makes their installation more complex and labor-intensive. Conversely, Type 2 protectors are typically installed inside load centers or distribution panels, making them easier to retrofit. They often involve straightforward plug-in or bolt-on procedures, with minimal wiring modifications. Overall, Type 1 installations demand more time, skill, and safety considerations, whereas Type 2 devices offer a simpler, more accessible setup for most electrical systems.
Surge Capacity Needs
Evaluating your surge capacity needs is essential to selecting the right surge protector, as it involves understanding both the potential energy of surges and the likelihood of severe events like lightning strikes. Type 1 devices handle surge currents up to 25kA per mode, suitable for direct lightning strikes or high-energy surges. In contrast, Type 2 protectors can withstand surge currents up to 65kA, providing extra capacity for secondary protection and multiple transient events. To determine your needs, consider the risk of direct lightning or nearby storms, as well as the sensitivity of your equipment. Larger surge capacities help absorb higher energy surges without failure, ensuring critical electronics are protected during prolonged or repeated transient events. Proper assessment guarantees you choose a device that offers sufficient energy absorption.
System Compatibility
Selecting the right surge protector hinges on guaranteeing compatibility with your existing electrical system. Type 1 devices are installed at the service entrance and connect directly to utility supply lines, providing primary protection for the entire system. They require appropriate mounting points at the service entry and are suited for direct connection. Conversely, Type 2 devices are typically installed within panels or subpanels, protecting downstream circuits and sensitive electronics. Compatibility depends on your system’s configuration—single-phase or split-phase systems may need different surge protection types. It’s vital to match the surge protector’s voltage ratings and configurations with your system’s specs to ensure effective, code-compliant surge mitigation. Proper compatibility prevents installation issues and maximizes protection.
Regulatory Compliance
Understanding the regulatory requirements set by NEC 230.67 is essential when deciding between Type 1 and Type 2 surge protectors, as they both serve different roles in ensuring electrical safety. NEC mandates that all dwelling service panels have either Type 1 or Type 2 devices, which must be UL 1449 listed to meet safety and performance standards. Type 1 protectors are installed at the main service entrance, providing primary protection against external surges and directly safeguarding the main panel. Conversely, Type 2 devices are placed downstream within panels or branch circuits to handle residual and internal surges. Ensuring compliance with these regulations helps protect appliances and electronics from voltage transients, reducing potential damage and aligning with safety standards required for electrical installations in residential settings.
Monitoring Features
Have you ever wondered how to guarantee your surge protector is working effectively over time? Monitoring features are key. LED indicators provide instant status updates, showing whether your device is actively protecting or needs replacement. Surge counters are invaluable—they track the number of surges diverted, helping you assess wear and decide when maintenance is necessary. Audible alarms serve as an extra warning, alerting you immediately if protection fails or is compromised. Some advanced models even include digital displays or remote notifications, offering enhanced oversight and convenience. These features ensure you’re always aware of your surge protector’s condition, minimizing the risk of unnoticed failures. Choosing a device with robust monitoring capabilities helps maintain safety and compliance, especially critical for NEC 230.67 standards.
Cost Considerations
When choosing between Type 1 and Type 2 surge protectors for NEC 230.67 compliance, cost is a crucial factor to consider. Type 1 devices usually have higher initial costs because of their robust build and higher surge current capacity, often over 25kA per mode. In contrast, Type 2 protectors tend to be less expensive upfront but may need more frequent replacements if surges are common. Installing a Type 1 SPD at the service entrance might cost more initially due to specialized wiring or placement requirements, but it can save money over time by providing extensive protection. Ultimately, weighing the higher upfront expense against potential damage and repair costs from surges is essential to making a cost-effective choice.
Frequently Asked Questions
How Do Surge Protectors Impact Overall Electrical System Safety?
Surge protectors greatly boost overall electrical system safety by preventing damage from voltage spikes. I rely on them to safeguard sensitive equipment and reduce fire risks caused by electrical surges. When properly installed, they act as a critical barrier, protecting both people and property. I always recommend using the right type of surge protector to guarantee compliance with safety codes and to maintain a reliable, safe electrical system.
What Are the Maintenance Requirements for Type 1 and Type 2 Surge Protectors?
Think of surge protectors as the unsung heroes of your electrical system, much like a trusty sidekick. For maintenance, I recommend inspecting both Type 1 and Type 2 protectors regularly—at least once a year—and replacing any damaged or worn components. Keep an eye on indicator lights, and make certain connections stay tight. Proper upkeep ensures they’ll keep guarding your system against unexpected surges and prolong their lifespan.
Can Surge Protectors Interfere With Home Automation Systems?
Surge protectors can sometimes interfere with home automation systems by causing false triggers or disruptions. I’ve noticed that especially with older or overly sensitive devices, surges can lead to unexpected behavior. To minimize this, I recommend using high-quality protectors designed for smart systems and ensuring proper installation. Regular maintenance and testing also help prevent potential interference, keeping your home automation running smoothly without interruptions.
Are There Specific Industry Standards Beyond NEC 230.67 for Surge Protectors?
Yes, there are industry standards beyond NEC 230.67 for surge protectors. I pay close attention to UL 1449, which sets safety and performance requirements for surge protective devices. Additionally, IEEE standards like IEEE C62.41 help guide installation and performance expectations. Staying compliant means I make certain my surge protectors meet these standards to protect my appliances and ensure safety, especially with evolving regulations and technology.
How Do Surge Protectors Perform During Prolonged Power Surges?
During prolonged power surges, surge protectors can struggle to keep up, especially if they’re not rated for sustained events. I’ve seen cheaper models fail after extended surges, leaving equipment vulnerable. That’s why I recommend high-quality surge protectors with robust surge capacity and thermal disconnect features. They can absorb longer surges more effectively, giving you peace of mind that your devices stay protected even during extended electrical disturbances.
Conclusion
Choosing between Type 1 and Type 2 surge protectors is like picking the right umbrella for the weather — you want the best shield possible. By understanding their differences and NEC 230.67 compliance, I can guarantee my electrical system stays protected from unexpected surges. Whether it’s a panel-mounted or plug-in device, making the right choice means peace of mind, just like a sturdy umbrella keeps you dry during a storm.
